Send InquiryHoneywell Make Pressure Transmitter
Price 28899.0 INR/ Number
Honeywell Make Pressure Transmitter Specification
- Equipment Type
- -
- Mounting Type
- yes
- Display Type
- yes
- Max Height
- 7
- Humidity
- -
- Color
- blue
- Features
- Oil & Gas/Petrochemical: High-pressure measurement in boilers, fuel feeds, reaction vessels, and hydrocarbon recovery. Water & Wastewater: Level measurement, filter monitoring, pump control. Chemical: Monitoring reaction vessels, liquid processing, and containment. HVAC & Industrial Automation: Air compressor monitoring, fluid pressure, and general system automation. Food & Beverage: Hygienic process control. Power Generation: Boiler drum level, steam pressure measurement.
- Response Time
- 1 Seconds
- Port Size
- 1/2
- Accuracy
- 0.006 %
- Resolution
- -
- Voltage
- 11 -42 Volt (v)
- Operate Method
- -
- Interface Type
- -
- Measuring Range
- -50oC TO 70oC Celsius (oC)
- Application
- industrial
- Classification
- -
- Dimension (L*W*H)
- - Centimeter (cm)
- Weight
- 1 Kilograms (kg)
- Operating Voltage
- 42 Volt (V)
- Power
- 11 - 42 Volt (v)
- Temperature
- -40 - 85 Celsius (oC)
- Test Range
- 50 - 1000 BAR
- Specimen Size
- - Millimeter (mm)
- Number of Specimens
- -
- Usage
- industrial use
- Capacity
- 1000 Kg
- Power Supply
- 230
- Automation Grade
- -
- Hardness
- hard
- Frequency
- 2.4 Megahertz (MHZ)
- Material
- steel
- Product Type
- -
- Machine Weight
- 1 Kilograms (kg)
- Test Speed
- -
- Test Width
- - Millimeter (mm)
- Test Stroke
- -
- Control Mode
- -
Honeywell Make Pressure Transmitter Trade Information
- Minimum Order Quantity
- 10 Number
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 100 Per Month
- Delivery Time
- 7 Days
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- Box Pack
- Main Domestic Market
- All India
- Certifications
- yes
About Honeywell Make Pressure Transmitter
Part of the SmartLine family of products, the STG700 and
STG70L are suitable for monitoring, control and data
acquisition featuring piezoresistive sensor technology
combining pressure sensing with on-chip temperature
compensation capabilities providing high accuracy, stability
and performance over a wide range of application
pressures and temperatures. The SmartLine family is also
fully tested and compliant with Experion PKS providing
the highest level of compatibility assurance and integration
capabilities. SmartLine easily meets the most demanding
application needs for pressure measurement applications.
Best in Class Features:
Accuracies up to 0.065% of span.
Stability up to 0.020% of URL per year for 10
years.
Automatic temperature compensation.
Rangeability up to 100:1.
Response times as fast as 100ms .
Easy to use and intuitive display capabilities.
Intuitive External Zero, Span and configuration
capability.
Comprehensive on-board diagnostic capabilities.
Integral Dual Seal design for safety based on
ANSI/NFPA 70-202 and ANSI/ISA 12.27.0.
Full compliance to SIL 2/3 requirements.
Modular design characteristics.
Available with additional 4-year warranty.
Communications/Output Options:
HART (version 7.0)

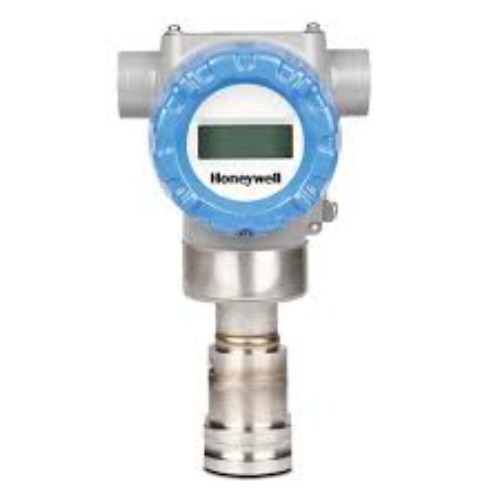

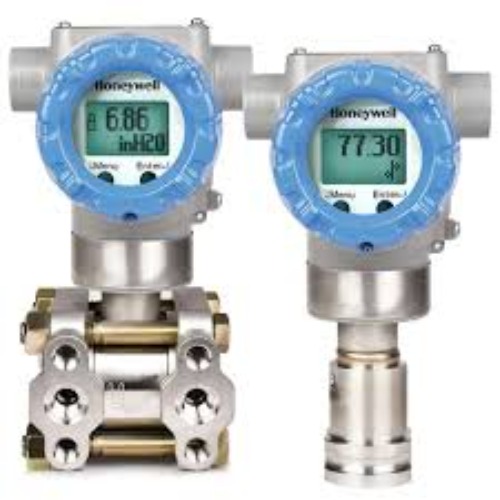

Figure 1 STG700 Dual Head and Inline Gauge
Pressure Transmitters feature field-proven
piezoresistive sensor technology
Span & Range Limits:
Model
URL
psi (bar)
LRL
psi (bar)
Min Span
psi (bar)
STG735/STG73S 50 (3.5) -14.7 (-1.0) 0.5 (0.035)
STG745/STG74S 500 (35) -14.7 (-1.0) 5 (0.35)
STG775/STG77S 3000 (210) -14.7 (-1.0) 30 (2.1)
STG78S 6000 (420) -14.7 (-1.0) 60 (4.2)
STG79S 10000 (690) -14.7 (-1.0) 100 (6.9)
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Testing Equipment Category
Meanwell Make Switch Mode Power Supply (SMPS)
Price 1850.0 INR / Number
Minimum Order Quantity : 10
Test Width : 82 MM Millimeter (mm)
Power Supply : 230 VAC
Machine Weight : 230 G Gram (g)
Material : Mean Well uses industrialgrade materials optimized for heat dissipation, electrical insulation, and structural durability. The specific construction varies by series to meet different environmental and safety requirements

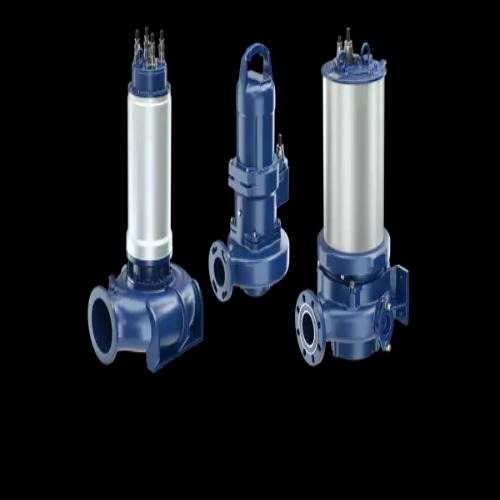

KSB Submersible Pumps KSB MIL 78000
Price 6700.0 INR / Number
Minimum Order Quantity : 10
Test Width : 150 Millimeter (mm)
Power Supply : 1060
Machine Weight : 15 To 40 Gram (g)
Material : The KSB MIL 78000 series uses highperformance, wearresistant materials specifically selected for highpressure and erosive severeservice applications

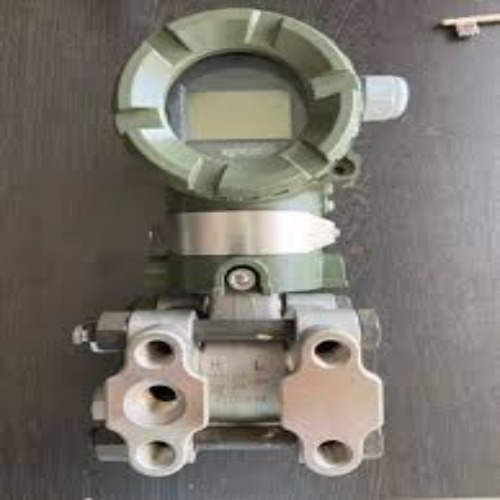

Yokogawa Make Pressure Transmitter
Price 20801.0 INR / Number
Minimum Order Quantity : 3
Test Width : 2 Meter (m)
Power Supply : 230
Machine Weight : 500 Gram (g)
Material : Stainless Steel

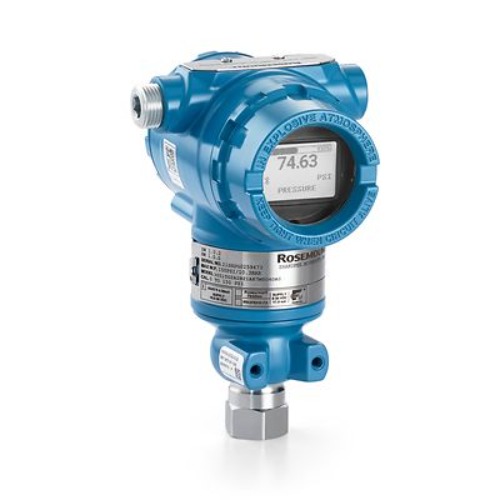

Emerson Make Rosemount Diffential Pressure Transmitter (3051CD)
