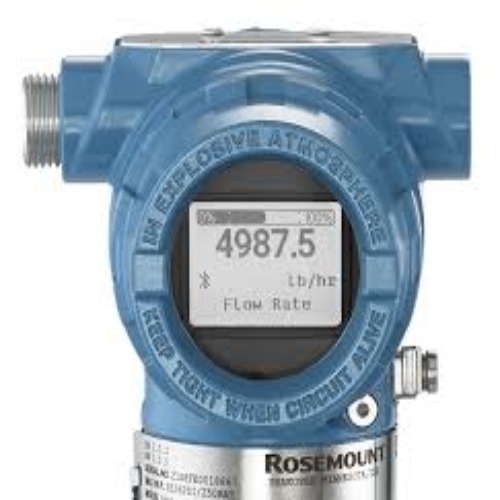

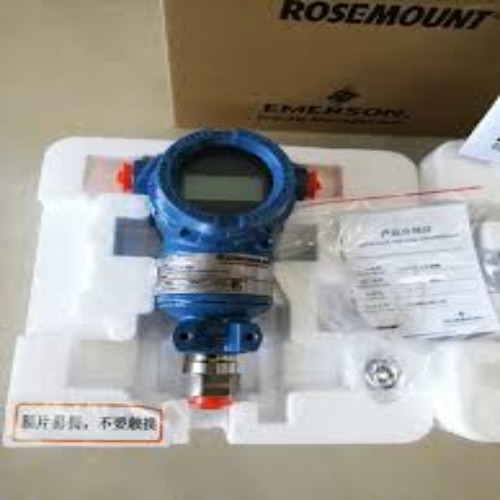

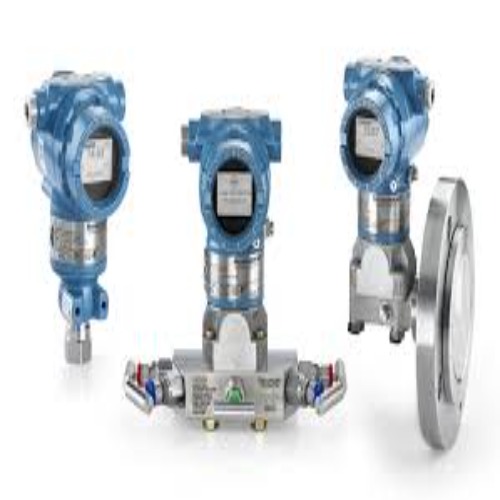

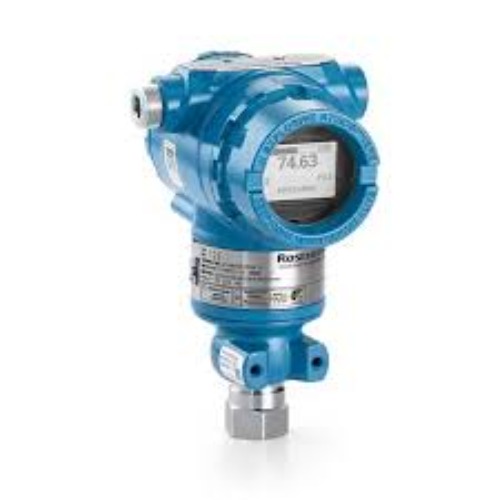

Emerson Make Rosemount Transmitter (3051TG) Specification

Equipment Type
-

Max Height
5 "

Port Size
Typically 14 NPT female or ANSI/DIN flanges (model dependant)

Accuracy
0.075% of span %

Response Time
0.1 Seconds

Classification
Industrial Process Measurement Instrument

Humidity
-

Frequency
22 Hertz (HZ)

Color
blue

Operating Voltage
10.5 55 V DC Volt (V)

Automation Grade
-

Usage
industrial use

Capacity
Up to ~20000 psi Kg

Test Range
14.7 to 20000 psi

Product Type
-

Dimension (L*W*H)
Compact cylindrical sensor body with electronics housin Centimeter (cm)

Application
Industrial pressure measurement (liquids, gases, steam) Tanks, vessels, pipelines monitoring Level & flow (via pressure differential / manifold setups) Process control in oil & gas, chemical, power plants, water treatment

Material
Wetted Materials: 316L Stainless Steel standard Optional exotic materials: Hastelloy, Monel, Tantalum, Gold Plated alloys Filling Fluid: Silicone oil or inert fluid Housing Material: Aluminum or stainless steel with conduit entry (M20 1.5 or NPT)

Weight
400 Grams (g)

Resolution
6-bit ADC equivalent

Features
Wide Pressure Range ,High Accuracy .

Specimen Size
1 Millimeter (mm)

Voltage
10.5 55 V DC Volt (v)

Number of Specimens
-

Interface Type
Local Interface: Optional LCD display and local configuration buttons (M5) Remote Digital: HART communicator / AMS or fieldbus interfaces for configuration and diagnostics

Measuring Range
01 Celsius (oC)

Hardness
hard

Operate Method
Pressure sensed by diaphragm Diaphragm movement converted to electrical signal Signal linearized and output as 4 20 mA with digital overlay Field communicator (HART) can adjust calibration and configuratio

Power
10.5 55 V DC Volt (v)

Temperature
40 C to +85 C Celsius (oC)

Gas Pressure
- PSI

Mounting Type
Direct inline mounting with bracket (B4) for pipe or panel Flanges or adapters available (coplanar, threaded)

Power Supply
10.5 55 V DC

Display Type
local LCD display

Machine Weight
400 Gram (g)

Test Speed
-

Test Width
- Centimeter (cm)

Test Stroke
-

Control Mode
Measurement Only

Emerson Make Rosemount Transmitter (3051TG) Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Advance (CA)

Supply Ability
100 Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Box pack

Main Domestic Market
All India

Certifications
With Test Certificate

About Emerson Make Rosemount Transmitter (3051TG)

The Rosemount 3051TG is a gauge pressure transmitter from the Emerson Rosemount 3051 series industrystandard instruments used to measure pressure in liquids and gases and convert it to a standard electrical signal for process controls.

Key Features

Measurement Type

Gauge Pressure (pressure relative to atmospheric)
Often used in pipes, tanks, vessels, and process lines.

Output & Communication

420mA analog
HART protocol for digital communication, configuration, and diagnostics
Optional FOUNDATION Fieldbus or PROFIBUS PA in some versions

Pressure Ranges

Variable depending on model code examples include:

14.7 to 30psi (1.01 to 2.06bar)
14.7 to 150psi (1.01 to 10.34bar)
14.7 to 4000psi (1.01 to 275.79bar)
14.7 to 10000psi (1.01 to 689.47bar)

This makes it suitable for low to very high pressure applications.

Accuracy & Performance

0.040.075% of span (very accurate)
Excellent longterm stability
Fast dynamic response compared to typical transmitters

Construction & Materials

316L Stainless Steel processwetted
Optional exotic materials (Hastelloy, Monel, Tantalum) for aggressive media
Coplanar diaphragm design for reliable sensing

Operating Conditions

Looppowered (10.555VDC for 420mA versions)
Suitable for wide ambient and process temperatures
Robust IP66/67 housing (dust and water protection)

Typical Uses

Industrial process pressure measurement
Level measurement via differential pressure (with two sensors or remote seals)
Flow measurement (with DP devices/orifice taps)
Oil & gas, chemical, petrochemical, utilities, water treatment

These units are widely used because they are highly reliable, accurate, and integrate easily with PLC/DCS systems via HART/FIELD protocols.

Summary (Easy Quick Reference)

Feature	Specification
Product	Emerson Rosemount 3051TG
Type	Gauge Pressure Transmitter
Output	420mA + HART
Pressure Range	From low vacuum up to very high pressures (e.g., 10000psi)
Accuracy	High (0.040.075%)
Materials	316L SS & optional corrosionresistant alloys
Use	Industrial pressure and process measurement
